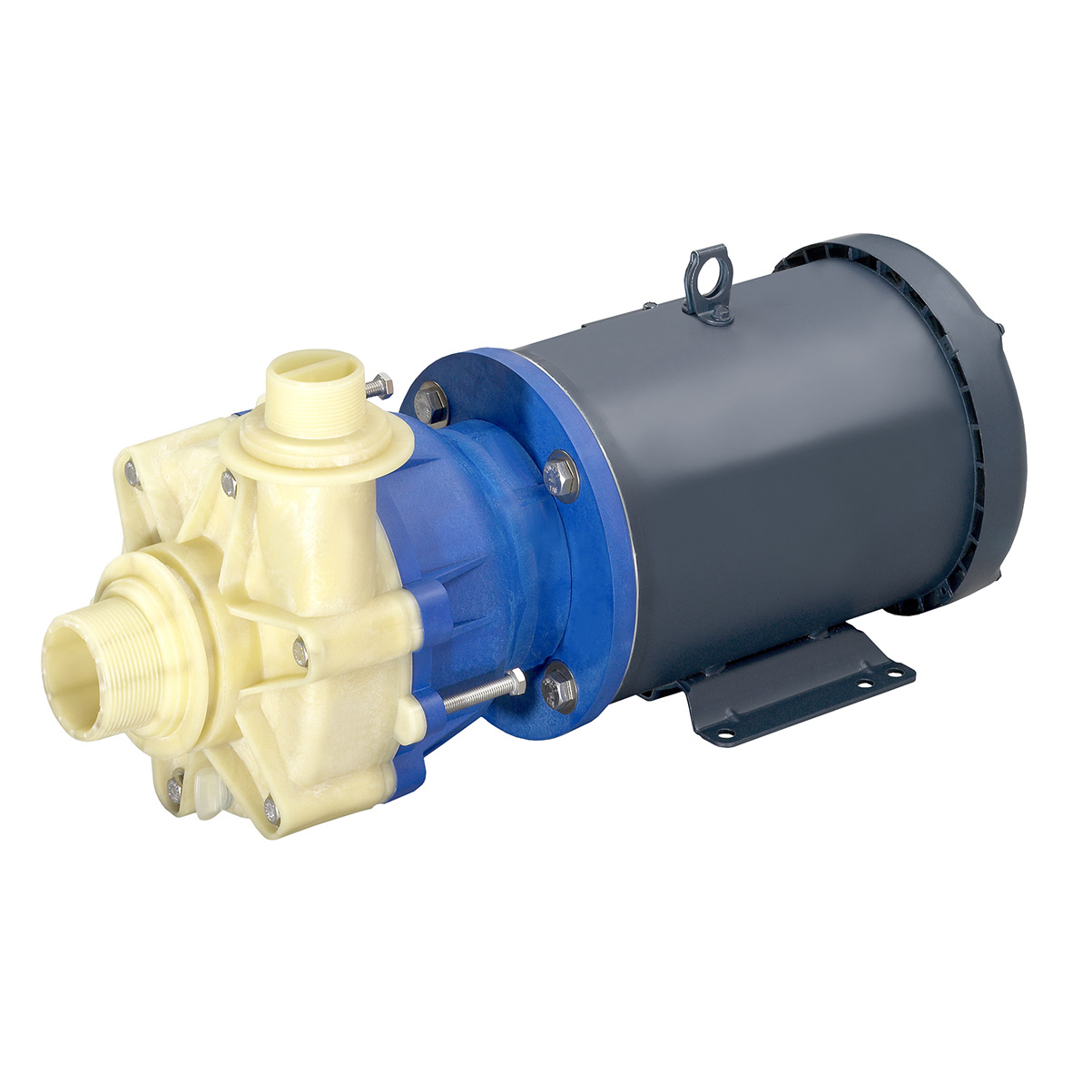

Sethco 2500 Series Magnetic Drive End Suction Pumps

Sethco 2500 series mag-drive end suction pumps are leak-proof, sealless, easy to maintain, and can handle liquids with a specific gravity of up to 1.8 without trimming impeller or reducing performance. Made from glass-reinforced polypropylene or PVDF to handle temperatures up to 210 degrees F.

PRODUCT DETAILS

Description: Sethco 2500 Series Magnetic Drive End Suction Pumps are offered in a wide range of specifications. Click on the model number or to find out the model needed use the selector menu. Choose from glass-reinforced polypropylene or PVDF, the motor phase, max flow and max head, and the type of motor. Or call or chat for free guidance! These Sethco pumps are ideal for highly corrosive or mild chemicals, acids or solvents and more and are the frequent choice in water, wastewater, agriculture and aquatic systems. Max flow to 250 GPM with a max head of 105, 2.5-in. inlet / 2-in. outlet.
Notes: White pump ends are polypropylene while black pump ends are PVDF
Lead Time: 7-10 business days from CT. For emergencies, please call us at 203-740-1877.

Choose by Model Number

Or Choose By Specifications

  • Available
  • Selected
  • Unavailable with Selected

$5,891.76$8,461.32

$5,891.76$8,461.32
Specifications 10 hp 3 ph 3 hp 3 ph 5 hp 3 ph 7.5 hp 3 ph
Flow Details max flow 170 gpm with a max head of 60 2.5 in inlet 2 in outlet max flow 195 gpm with a max head of 76 2.5 in inlet 2 in outlet max flow 220 gpm with a max head of 85 2.5 in inlet 2 in outlet max flow 250 gpm with a max head of 105 2.5 in inlet 2 in outlet
Material polypropylene pvdf
Motor Phase 208-230/460v 3ph
