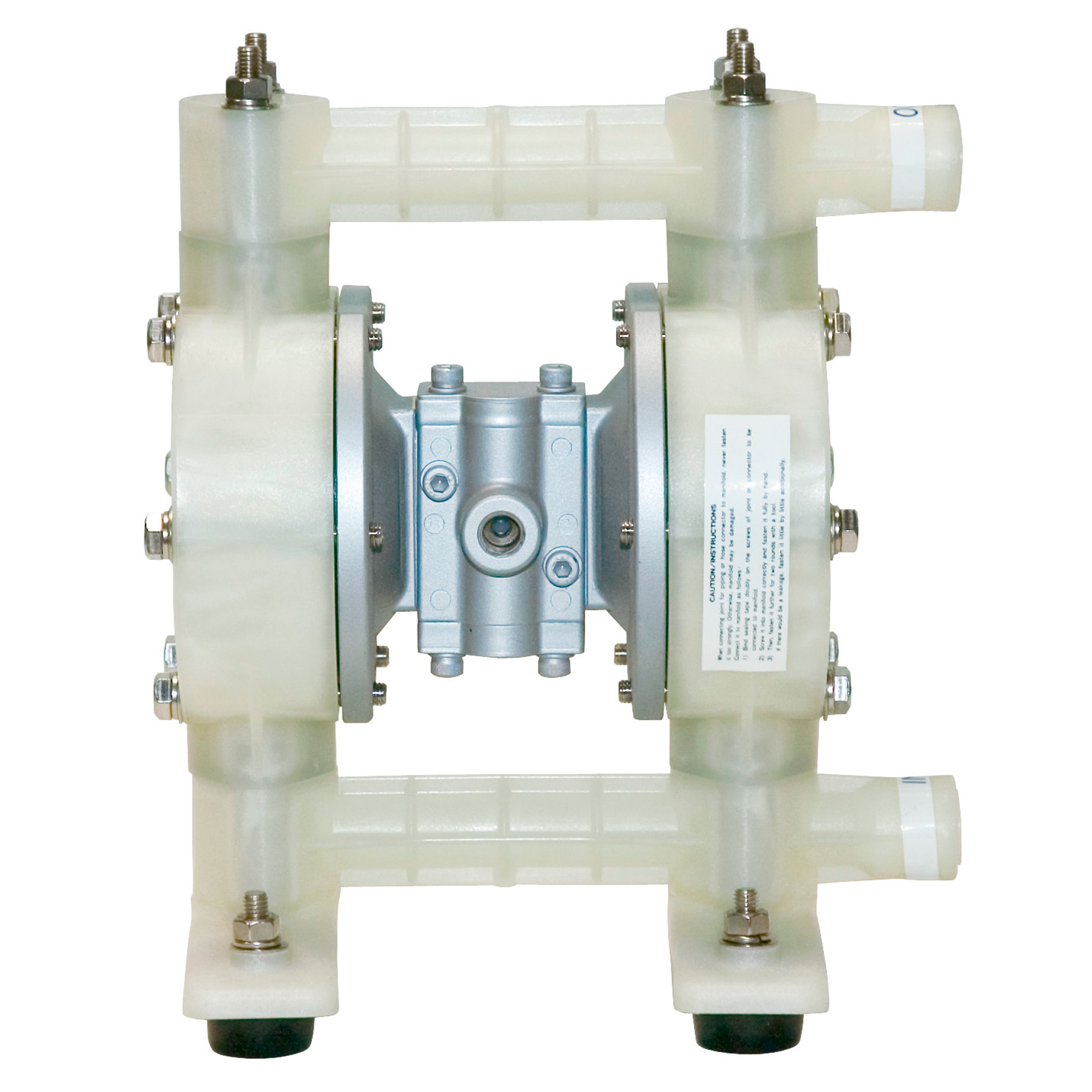

Yamada DP -15 Series 1/2 in. Pumps

All Yamada DP -15 series, 1/2-inch, air-powered, double diaphragm pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly. Since the air valve is accessible from the outside, the Yamada pumps can remain in operation during inspections and valve maintenance. These self-priming pumps allow for high suction lift and may be easily adjusted to suit a wide range of pumping applications. Designed to eliminate rotors, gears, pistons and other wear parts, these Yamada pumps perform with extended life with minimal maintenance needs.

PRODUCT DETAILS

Description: Yamada 1/2-inch, air-operated, double-diaphragm (AODD) pumps handle a wide variety of fluids with a high or low solids content for smooth, consistent, efficient pumping. Flow rate to 7.4 GPM max, 1/2 in. FNPT port size, 1/4 in. FNPT air inlet. Choose polypropylene or groundable acetyl for the pump body material and choose the diaphragm material based on the maximum liquid temperature:
Neoprene to 180 degrees F
Buna 180
PTFE 212
Santoprene 225
Hytrel 248
Call or chat for free guidance!
Notes: 1/2-inch inlet and discharge, available in a variety of material combinations
Lead Time: 1-2 weeks from CT. For emergencies, please call us at 203-740-1877.

Choose by Model Number

Or Choose By Specifications

  • Available
  • Selected
  • Unavailable with Selected

$365.50$446.50

$365.50$446.50
Specifications ball valves, buna diaphragms ball valves, hytrel diaphragms ball valves, ptfe diaphragms ball valves, santoprene diaphragms flat valves, buna diaphragms flat valves, hytrel diaphragms flat valves, ptfe diaphragms flat valves, santoprene diaphragms
Flow Details 7.4 gpm max, 1/2 in. FNPT port size, 1/4 in. FNPT air inlet
Material groundable acetal polypropylene
