Gizmo Engineering T4 Digital Timer – Battery Power
This T4 digital process control timer counter by Gizmo Engineering combines a waterproof countdown timer and alarm that lights up in red and shrieks at 103 dB to alert the end of each cycle and cut through any industrial noise. It even offers a choice of several warbling alarm sounds to differentiate one timer alarm from another. Just press a button to set the time to count down from as little as one second to as long as 100 hours then press the green button to start. Or set it to count up from zero! It’s easy to see the time being counted with 99.9% accuracy on the large, digital display.
Versatile Industrial Timer
This T4 timer may be quickly switched among eight, different operating modes based on the installation.
Mode 1 – counts down from the set time or counts up from zero and cancels anytime.
Mode 2 – same as Mode 1 but cannot be canceled.
Mode 3 – allows the time cycle to be triggered mechanically with a contact close that remains closed throughout the countdown.
Mode 4 – allows the cycle to be paused and re-started until the time accumulates a set value.
Mode 5 – stops automatically at the end of cycle and may be canceled anytime.
Mode 6 – stops automatically at the end of the cycle without cancellation option.
Mode 7 – the start button must be pressed continually or the alarm sounds.
Mode 8 – provides an early warning alert before the cycle ends such as lighting a stack light amber before turning red.

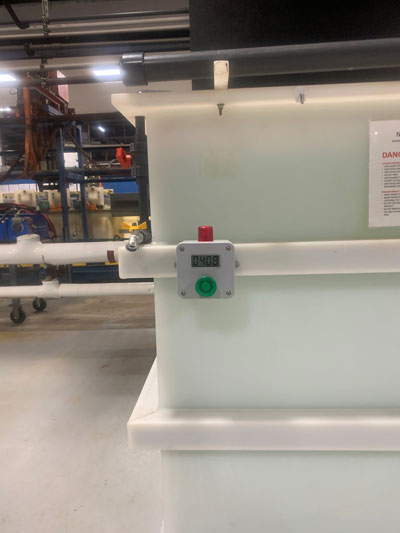

The rugged T4 timer comes in a waterproof, corrosion-proof IP65 (NEMA 4X) enclosure designed to handle wet, corrosive and other harsh, industrial, indoor and outdoor environments to temperatures as cold as -40 to 122 degrees F. Extremely smart, low power circuitry allows the 9V lithium battery (included!) to last for years. It’s ideal for plating lines, for commercial kitchens, and nearly any industrial process.
Customize for Plating, Heating
Magnet Mount – the T4 process timer is available with magnetic mounts that allow the timer alarm to be installed on industrial ovens, tanks and other metal equipment without requiring any holes. Comes with four, very powerful magnets for each of the four mounting feet.
Buzzer Control – the T4 digital timer is available with a snap-on muffler for extra control over the buzzer volume. It reduces the sound level by up to 20 dB.
|Description:||T4 digital process control timer counter counts down then sounds an alarm. Large numerical display in compact 4" x 4" x 2" NEMA 4x, waterproof enclosure plus extra long-lasting, lithium battery included.|
|Lead Time:||2-4 business days from NY. For emergencies, please call us at 203-740-1877.|
Choose by Model Number
Or Choose By Specifications
- Unavailable with Selected
$236.68 – $258.99
