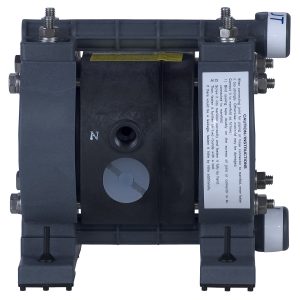

Yamada NDP-5 Series 1/4-Inch Pumps
Yamada 1/4-inch, air-operated, double-diaphragm (AODD) pumps handle a wide variety of fluids with a high or low solids content for smooth, consistent, efficient pumping. Flow rate to 3.1 GPM max, 1/4 in. FNPT port size, 1/4 in. FNPT air inlet. Choose the pump material based on its temperature limit:
Polypropylene (PPG) 180 degrees F
PVDF 212
Aluminum 212
316 Stainless Steel 212
Call or chat for free guidance!
$347.80 – $676.80 Select options
Yamada NDP-15 Series 1/2-Inch Diaphragm Pumps
Yamada 1/2-inch, air-operated, double-diaphragm (AODD) pumps handle a wide variety of fluids with a high or low solids content for smooth, consistent, efficient pumping. Flow rate to 13.5 GPM max, 1/2 in. FNPT port size, 1/4 in. FNPT air inlet. Choose polypropylene, PVDF, aluminum, stainless steel or acetal for the pump body material:
Polypropylene may be fitted with ball valves or flat check valves. Reliable recommends ball valves for flooded suction applications and flat check valves for suction lift applications. Check valves only for PVDF. Ball valves only for aluminum and stainless steel. Choose the diaphragm material based on the maximum liquid temperature:
Neoprene to 180 degrees F
Buna 180
PTFE 212
Santoprene 225
Hytrel 248
Call or chat for free guidance!
$365.50 – $1,212.60 Select options
Yamada DP-10 Series 3/8-Inch Pumps
Yamada 3/8-inch, air-operated, double-diaphragm (AODD) pumps handle a wide variety of fluids with a high or low solids content for smooth, consistent, efficient pumping. Flow rate to 6 GPM max, 3/8 in. FNPT port size, 1/4 in. FNPT air inlet. Choose polypropylene, aluminum of stainless steel for the pump body material and choose the diaphragm material based on the maximum liquid temperature:
Neoprene to 180 degrees F
Buna 180
PTFE 212
Santoprene 225
Hytrel 248
Call or chat for free guidance!
$423.00 – $1,184.40 Select options
Yamada DP -15 Series 1/2 in. Pumps
Yamada 1/2-inch, air-operated, double-diaphragm (AODD) pumps handle a wide variety of fluids with a high or low solids content for smooth, consistent, efficient pumping. Flow rate to 7.4 GPM max, 1/2 in. FNPT port size, 1/4 in. FNPT air inlet. Choose polypropylene or groundable acetyl for the pump body material and choose the diaphragm material based on the maximum liquid temperature:
Neoprene to 180 degrees F
Buna 180
PTFE 212
Santoprene 225
Hytrel 248
Call or chat for free guidance!
$365.50 – $446.50 Select options
Yamada NDP-20 Series 3/4-Inch Pumps
Yamada 3/4-inch, air-operated, double-diaphragm (AODD) pumps handle a wide variety of fluids with a high or low solids content for smooth, consistent, efficient pumping. Flow rate to 31.7 GPM max, 3/4 in. FNPT port size, 1/4 in. FNPT air inlet. Choose polypropylene, aluminum or stainless steel for the pump body material, ball valves as standard. Choose the diaphragm material based on the maximum liquid temperature:
Neoprene to 180 degrees F
Buna 180
PTFE 212
Nordel 212
Santoprene 225
Hytrel 248
Viton 248
Call or chat for free guidance!
$667.40 – $1,602.70 Select options
Yamada NDP-25 Series 1-Inch Double Diaphragm Pumps
Yamada 3/4-inch, air-operated, double-diaphragm (AODD) pumps handle a wide variety of fluids with a high or low solids content for smooth, consistent, efficient pumping. Flow rate to 46.2 GPM max, 1-inch FNPT port size, 3/8 in. FNPT air inlet. Choose polypropylene, aluminum, stainless steel, cast iron or PVDF for the pump body material, ball valves as standard. Choose the diaphragm material based on the maximum liquid temperature:
Neoprene to 180 degrees F
Buna 180
PTFE 212
Nordel 212
Santoprene 225
Hytrel 248
Viton 248
Call or chat for free guidance!
$775.50 – $2,194.90 Select options
Yamada NDP-40 Series 1-1/2 Inch AODD Pumps
Yamada 1-1/2-inch, air-operated, double-diaphragm (AODD) pumps handle a wide variety of fluids with a high or low solids content for smooth, consistent, efficient pumping. Flow rate to 107 GPM max, 1.5 in. ANSI flanged ports, 1/2 in. FNPT air inlet. Choose polypropylene, aluminum, stainless steel, cast iron or PVDF for the pump body material, ball valves as standard. Choose the diaphragm material based on the maximum liquid temperature:
Neoprene to 180 degrees F
Buna 180
PTFE 212
Nordel 212
Santoprene 225
Hytrel 248
Viton 248
Call or chat for free guidance!
$1,062.20 – $5,292.20 Select options
Yamada NDP-50 Series 2 in. Pumps
Yamada 2-inch, air-operated, double-diaphragm (AODD) pumps handle a wide variety of fluids with a high or low solids content for smooth, consistent, efficient pumping. Flow rate to 164 GPM max, 2-in. ANSI flanged ports, 3/4 in. FNPT air inlet. Choose polypropylene, aluminum, stainless steel, cast iron or PVDF for the pump body material, ball valves as standard. Choose the diaphragm material based on the maximum liquid temperature:
Neoprene to 180 degrees F
Buna 180
PTFE 212
Nordel 212
Santoprene 225
Viton 248
Hytrel 248
Hytrel 248
Viton 248
Call or chat for free guidance!
$1,301.90 – $7,369.60 Select options
Yamada NDP-80 Series 3-Inch Pumps
Yamada 3-inch, air-operated, double-diaphragm (AODD) pumps handle a wide variety of fluids with a high or low solids content for smooth, consistent, efficient pumping. Flow rate to 215 GPM max, 3-inch. ANSI flanged ports, 3/4 in. FNPT air inlet; 3-inch FNPT port for cast iron. Choose polypropylene, aluminum, stainless steel, cast iron or PVDF for the pump body material, ball valves as standard. Choose the diaphragm material based on the maximum liquid temperature:
Neoprene to 180 degrees F
Buna 180
PTFE 212
Nordel 212
Santoprene 225
Hytrel 248
Viton 248
Call or chat for free guidance!
$1,955.20 – $9,221.40 Select options
