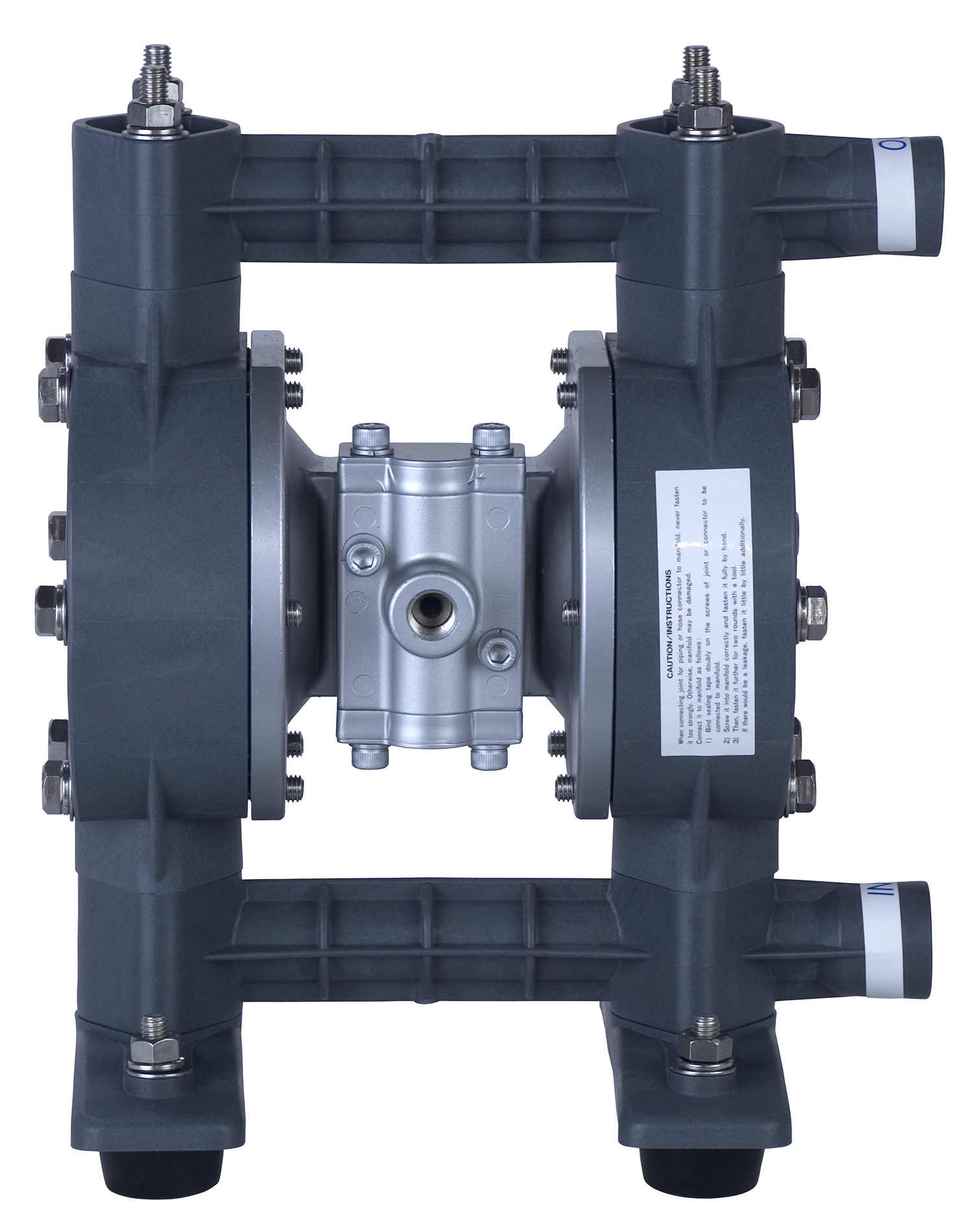

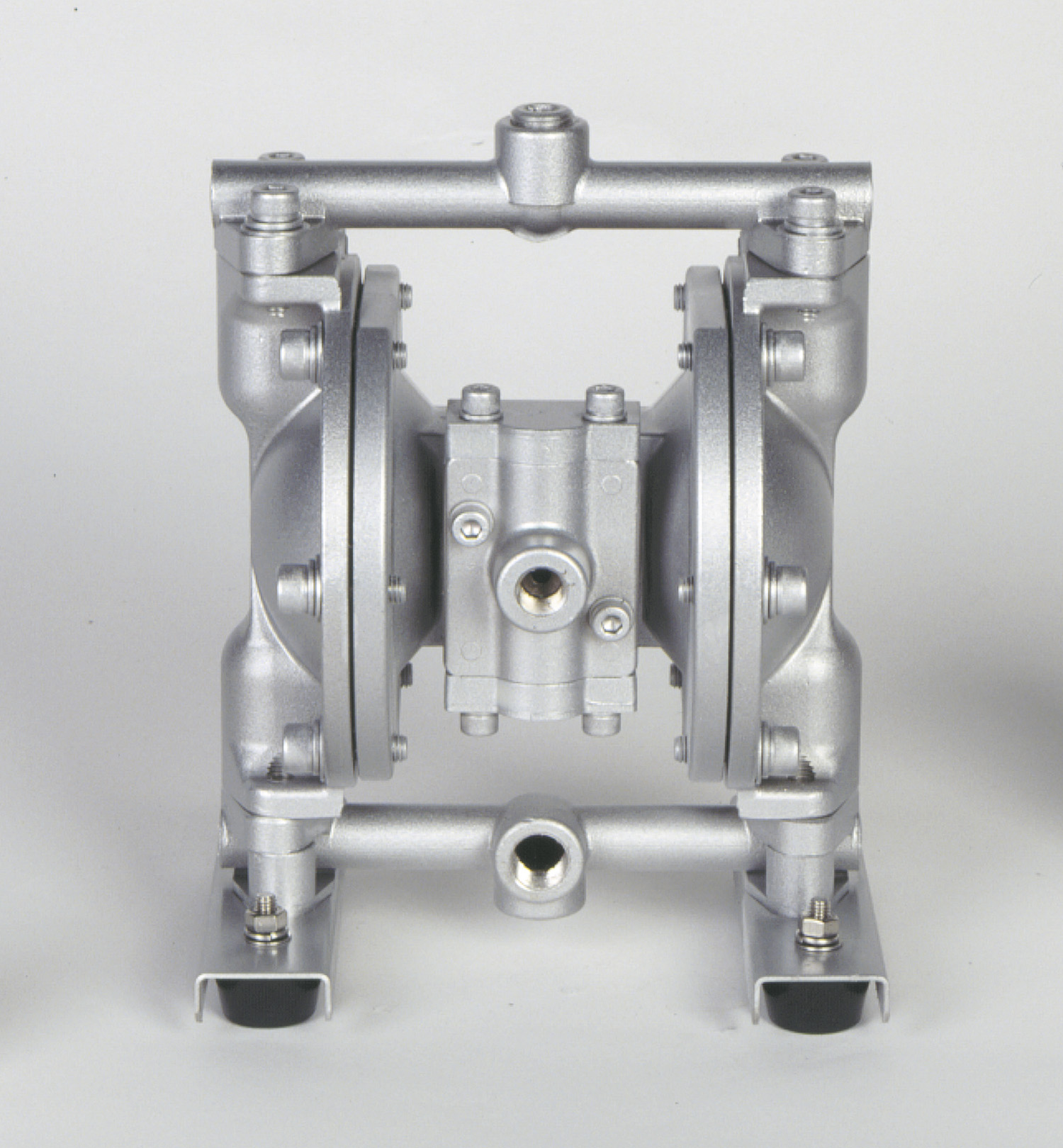

Yamada DP-10 Series 3/8-Inch Pumps

All Yamada DP-10 series, 3/8-inch, air-powered, double diaphragm pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly. Since the air valve is accessible from the outside, the Yamada pumps can remain in operation during inspections and valve maintenance. These self-priming pumps allow for high suction lift and may be easily adjusted to suit a wide range of pumping applications. Designed to eliminate rotors, gears, pistons and other wear parts, these Yamada pumps perform with extended life with low maintenance.

PRODUCT DETAILS

Description: Yamada 3/8-inch, air-operated, double-diaphragm (AODD) pumps handle a wide variety of fluids with a high or low solids content for smooth, consistent, efficient pumping. Flow rate to 6 GPM max, 3/8 in. FNPT port size, 1/4 in. FNPT air inlet. Choose polypropylene, aluminum of stainless steel for the pump body material and choose the diaphragm material based on the maximum liquid temperature:
Neoprene to 180 degrees F
Buna 180
PTFE 212
Santoprene 225
Hytrel 248
Call or chat for free guidance!
Notes: 3/8-inch inlet and discharge, available in a variety of material combinations
Lead Time: 1-2 weeks from CT. For emergencies, please call us at 203-740-1877.

Choose by Model Number

Or Choose By Specifications

  • Available
  • Selected
  • Unavailable with Selected

$423.00$1,184.40

$423.00$1,184.40
Specifications ball valves, buna diaphragms ball valves, hytrel diaphragms ball valves, neoprene diaphragms ball valves, ptfe diaphragms ball valves, santoprene diaphragms ball valves,hytrel diaphragms ball valves,neoprene diaphragms
Flow Details 6 gpm max 3/8 in fnpt port size 1/4 in fnpt air inlet
Material aluminum polypropylene stainless steel
